氣輔設備方案

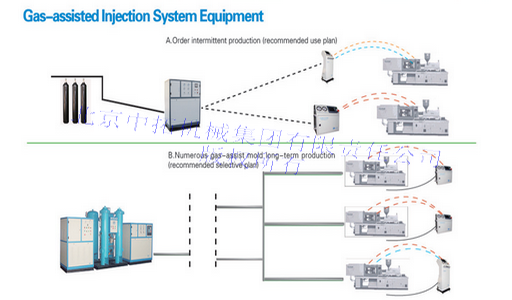

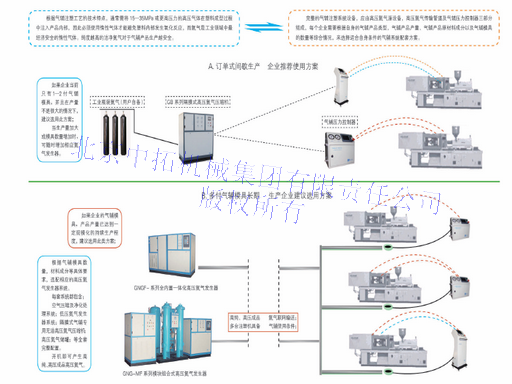

氣輔注塑設備方案選型 Gas-assisted injection system equipment

A、高壓氮氣源  High-pressure nitrogen system

螺桿式空氣壓縮 自動產生氮氣 全電腦控制※液晶顯示 數字設定啟停機壓力 循環水冷卻系統 全中文菜單※密碼保護 流程視窗指示部件工作狀態 隔膜式高壓壓縮方式 無污染增壓※品質保證 全自動運動※自動卸荷 運行噪聲：＜60db 系統控制器：全電腦閉環控制；

排氣量(NL/Min) 排氣壓力（Mpa） 氮氣純度 (%) 150-200 35 99-99.99% 250-300 35 99-99.99% 450-500 35 99-99.99%

Screw air compressor Automatic nitrogen generation Full computer control ※LCD display Start and stop pressure with digital setting Circulating water cooling  system Menu entirely in password protection Process window indicates the working status Diaphragm high-pressure compression Non-pollution pressurize ※Quality Assurance Automatic processing ※automatic unloading Running noise：＜60db System control:full computer closed-loop control;

B、高壓氮氣傳輸管道 high-pressure nitrogen transmission pipelines

高壓氮氣傳輸管道應該包括：高壓不銹鋼管、高壓手閥及兩端接頭

Complete  high-pressure nitrogen transmission pipelines：High-pressure stainless steel pipe、High-pressure Hand valve and High-pressure connector

氣輔壓力控制器High pressure N² Controller

C、C系列高精度氣輔壓力控制器我公司系統程序軟件為中拓最新全中英文自主知識產權專利產品，其機型核心部件為美國最新技術產品，該軟件具備目前國內最為完善的氣輔專用人機操作界面，方便使用。

全PLC控制，觸摸屏操作；多重全閉環伺服壓力控制；設定時間壓力曲線，實際輸出時間壓力曲線動態完善的壓力報警裝置，可獨立接駁模具油缸。模具氣缸及主動封閉式雙功能注射噴嘴等。

可根據產品和模具定制。

The N² Pressure Controller ,series C ,is the all new controller for gas assisted injection based on our practices in the past 10 years ,which provides not only precise output ,but also perfect operation interface and convenience of the user.

The controller is equipped with PLC control, and touch screen display. the output pressure is closed-loop controlled with servo valve according to the preset parameter, and both setup pressure curve and real pressure curve are displayed on the screen at same time.

Besides the programs installed for process control, system restore ,alarm and self-diagnosis ,the controller also provider the interface for periphery equipment, such as oil/air cylinder on mold, and needle-type shut-off nozzle, etc.

Depending on the design of product and mold, one of followings will be recommended.
